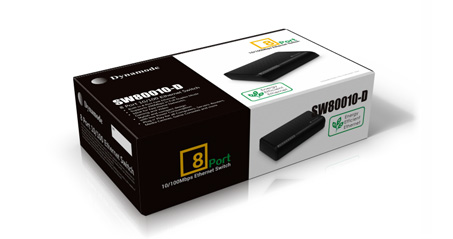

Item: 8 Port 10/100Mbps Ethernet Switch
Item code: SW80010-D
FEATURES
 Built-in 8 Port Fast Ethernet
Supports 200Mbps in Full Duplex Mode
Ideal for Fast Home Networks, Gaming and Video
Ideal for SME Businesses looking higher port densities
Sylish and compact design with low Power Consumption
Plug n' Play for all Computers, Servers, Routers, Media Centres, Game Consoles and more
SPECIFICATIONS
| Standards and Protocols |
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP |
| Basic Function |
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and
backpressure for Half-Duplex Mode |
| MAC Address Table |
1k |
| Forwarding Rate |
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port |
| Transmission Method |
Store-and-Forward |
| Ports |
8 10/100Mbps Auto-Negotiation
RJ45 ports (Auto MDI/MDIX) |
| Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ù STP (maximum 100m) |
LED Indicators
|
Power, Link/Act (1, 2, 3, 4, 5) |
| Environment |
Operating Temperature: 0°C~40°C (32℉~104℉)
Storage Temperature : -40°C~70°C (-40℉~158℉)
Relative Humidity :10% ~ 90%, non condensation
Storage Humidity : 5%~95% non-condensing |
| Power |
External Power Adapter |
|
